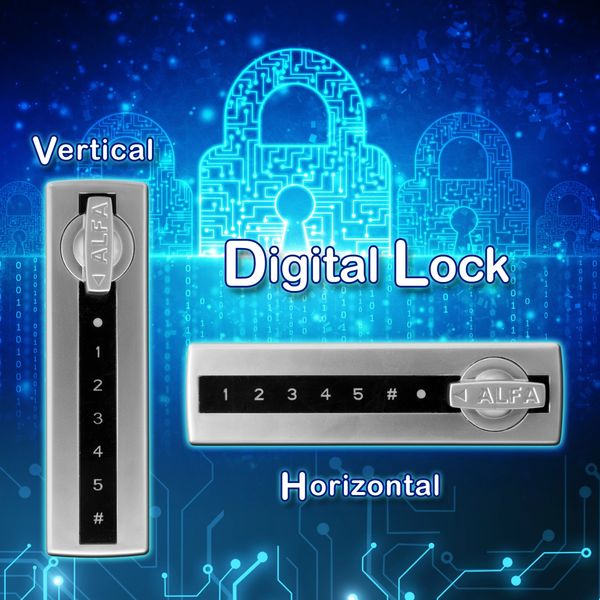

ELECTRONIC LOCK
- Application includes wooden and metal office furniture, storage lockers, cabinets, etc.
- Available 5/8" and 1 1/8" lock barrel lengths allow the lock to mount on material. thicknesses ranging from .036"to .875.
- Sensitive cap touch keypad,
- 4-8 digits user passcode.
- Two working modes: private mode & public mode.
- Available in horizontal and vertical configurations.
- Lock hardware and battery included.
Model: Alfa
- Lock body construction: Zinc Alloy.
- Lock body dimensions: 4-1/16L x 1-1/8W x 5/8H.
- Available lock barrel lengths: 5/8 or 1 1/8.
- Front knob rotation: 90 or 180 Degrees.
- Battery: DC 3V CR2032.
- Low power warning: 2.5V.
- Surface finish: Satin chrome plating.
Hardware available for the various thicknesses.
- 8-32 x 1" for 3/4" wood.
- 8-32 x 3/4" for 1/2" wood.
- 8-32 x 3/8" for metal.
- straight cam's available in various length.
- Offset cam's available in various offsets and lengths.
Flush Mount Electronic Lock
ZA-E 125 Vertical Electronic Lock
ZA-E125 Horizontal Electronic Lock
ZA-E 125 Vertical Electronic Lock
1. Suitable for different locker materials: metal, wooden, glass, MDF etc.
2. Suitable for different door thickness.
3.Two types: Vertical and Horizontal
4. 4~8 digits code, high security.
5. Two working modes for different application: public. mode, private mode & stand-by mode.
6. Sensitive digital touch pad, convenient and tactile.
7. With sound and light prompt functions.
8. Battery compartment design, Easy to disassemble and install.
Lock Specifications
ZA-E125 Horizontal Electronic Lock
ZA-E 125 Vertical Electronic Lock
Driven mode: Motor/servo Power consumption: 5 uA (static); 200 mA (Dynamic)Warning voltage: 2.5 VUn lock way: Password Response time: Less than 20ms,Working temperature: -25℃ ~ +65℃Working humidity: -5% ~ 95%RHWorking life: 500000 times External emergency power supply: 3~4.5V (Micro-USB connector)Salt spray testing: 72 hours Certification: CE; ISO9001; RoHS Application: storage locker; Gym cabinet; Pool storage locker; Furniture drawer.
ZA-E125 Horizontal Electronic Lock
ZA-E125 Horizontal Electronic Lock
ZA-E125 Horizontal Electronic Lock
Model: ZA-E125Material: Zinc alloy Surface treatment: Chrome plating Size: 128L*25W*15H mmWeight:160gBolt length: 30mm (can be customized)Battery: DC 3V (AA battery*2)
Site Content
ZA-E88 VERTICAL SILVER
ZA-E88 VERTICAL SILVER
ZA-E88 VERTICAL SILVER
1. Suit for furniture cabinet, office drawer, lockers, etc.
2. Suit for different locker material: wooden, metal, MDF, etc.
3. With messy code protection and OTP unlocking way.
4. Highly sensitive touchscreen keypad.
5. Working voltage: 6V(2032battery*2).
6. Color can be customized, a variety of choices
ZA-E88 VERTICAL BLACK
ZA-E88 VERTICAL SILVER
ZA-E88 VERTICAL SILVER
Name: Combination Cam Lock
Model：ZA-E88
Brand: Zamakast
Material ABS+PC
Size：88*38*19(L*W*H)
Type Cam lock
Battery DC 3V (2032battery*1)
Driven mode: Motor/servo
Unlock way: Code/ password/ digit
Response time: Less than 20ms
Working temperature：-20℃ ~ +65℃
Working humidity：10% ~ 90%RH
Working life：500000 times
Test: Salt spray testing 72 hours
Certification: CE; ISO9001; RoHSA.
ZA-E88 HORIZONTAL SILVER
ZA-E88 HORIZONTAL SILVER
ZA-E88 HORIZONTAL SILVER
ZA-E88 HORIZONTAL BLACK
ZA-E88 HORIZONTAL SILVER
ZA-E88 HORIZONTAL SILVER
ZAMAKAST INC
In today's business environment with shortages, longer lead times and with high cost of products and materials today there is no reason why you must spend $75, $100, $150USD or even more for an electronic lock that increases your budget and the budget of your customer when all companies are being more price conscious today. The Zamakast electronic lock is priced to meet your budgets with electronic locks that are priced at $50USD or less depending on the electronic lock you require. They all come with the same or better functionality of the higher priced electronic locks. The Zamakast locks are also easier to program if you require a private mode or a public mode. it comes with all the hardware including its own screw drive to change the batteries, which means no service charges to have someone change the batteries for you. There are no special keys for setting the locks or programing the locks.
So why pay more for an electronic locks when you can pay less for a quality product for your office furniture and locker products from Zamakast Inc.
