HIGHPOWERONE
HP1 8 DOOR STANDALONE ACCESS CONTROL SYSTEM.
The HighpowerOne is designed for easy installation and rapid deployment. It features an integrated touch screen allowing it to operate as a stand-alone controller. This provides shorter installation times; the unit is ready as soon as the readers are connected. Optionally network the controller when the IT department wants to get involved.
The on-screen stand-alone features bypass the need to have an IT department available on the day of the install, which means you can start issuing cards on the spot.
An easy to navigate touchscreen offers complete card system control providing a range of simple and advanced functions. Schedules, holiday management, expression dates and unlocking cycles can easily be managed with the touch screen. Once your system is configured, it can quickly be cloned onto the USB drive, so if the customer wants the same specifications on two different controllers you can duplicate your setup or use the USB a data backup.
The HighpowerOne is compatible with all standard readers, and wiring diagrams are available on screen to ensure a successful installation. Touch-screen functions allow you to specify custom card bit formats on each reader allowing you to migrate customers from older systems while retaining their existing cards.
Adding cards can be done on screen to one or several doors. Bulk enrollment and removal of cards is available, which makes enrolling a large number of cards immediate. The controller also has the ability to enroll and remove cards directly from certain readers using programming cards. This provides you with yet another easy way to manage the system.
In addition to programming the controller with the touchscreen, Windows based software is included at no charge with the kit. Full card and user management is available with this software for multiple computer users. Connect the controllers to the network using either wired Ethernet or the onboard Wi-Fi connections at your convenience.
We partner with you to get you off the job quickly and efficiently. We provide product training, factory tech support and, remote access tech support to each installation when needed. We also keep records of issued cards including facility codes, ID ranges, logos and specific instructions given on each order to eliminate mistakes and duplication when reordering cards. Our goal is to make maintenance of your deployments fast, easy and correct.

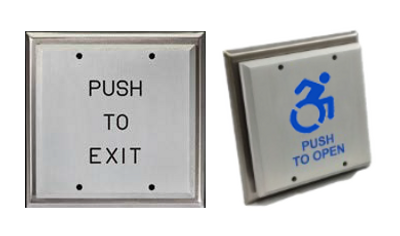

H-200 Series Double-gang box mountable egress door control.
· Size: 4.5”H x 4.5”W
· Tamper resistant, Allen screws behind the front plate
· 1 to 45 second adjustment range (PNZ)
· Quickly mounts to Double-gang electrical boxes
· Self-timing switches available with wires or terminal blocks (PNZ)
· Front Plate: 4" square Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2No14-10–Metlabsfile#E113051(PNZ)
· One-year factory warranty
· Free custom engraving Other finishes available upon request
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
· Size: 4.5”H x 2.75”W
· Tamper resistant, Allen screws behind the front plate
· 1 to 45 second adjustment range (PNZ)
· Quickly mounts to single-gang electrical boxes
· Self-timing switches available with wires or terminal blocks (PNZ)
· Front Plate: Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2 No 14-10 – Met labs file # E113051(PNZ)
· One-year factory warrant
Free custom engraving Other finishes available upon request
H-120 SERIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
· Size: 4.5”H x 2.75”W
· Tamper resistant, the button cannot be burned or pried off
· 1 to 45 second adjustment range (PNZ)
· Quickly mounts to single-gang electrical boxes
· Self-timing switches available with wires or terminal blocks (PNZ)
· Button: 1-5/8” Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2 No 14-10 – Met labs file # E113051(PNZ)
· One-year FACTORY warranty
· Free custom engraving Other finishes available upon request.
H-140 SERIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-100 SeRIES SINGLE-GANG BOX MOUNTABLE EGRESS DOOR CONTROL
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
· Size: 4.5”H x 2.75”W
· Tamper resistant, the button cannot be burned or pried off
· 1 to 45 second adjustment range (PNZ)
· Quickly mounts to single-gang electrical boxes
· Self-timing switches available with wires or terminal blocks (PNZ)
· Button: 2” Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2 No 14-10 – Met labs file # E113051(PNZ)
· One-year factory warranty
· Free custom engraving Other finishes available upon request
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
· Size: 4.5”H x 1.75”W
· Tamper resistant, Allen screws behind the front plate
· 1 to 45 second adjustment range (PNZ)
· Small, rugged self-timing switches available with wires or terminal block (PNZ)
· Mounts to narrow aluminum door frames
· Furnished with 3/8” filler plate for internal frame depth clearance
· Front Plate: Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2No14-10–Metlabsfile#E113051(PNZ)
· One-year factory warranty
· Free custom engraving Other finishes available upon request
H-130 Series narrow Style. Mounts to narrow aluminum door frames.
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
H-130 Series narrow Style. Mounts to narrow aluminum door frames.
· Size: 4.5”H x 1.75”W
· Tamper resistant, the button cannot be burned or pried off
· 1 to 45 second adjustment range (PNZ)
· Small, rugged self-timing switches available with wires or terminal block (PNZ)
· Mounts to narrow aluminum door frames
· Furnished with 3/8” filler plate for internal frame depth clearance
· Button: 1-5/8” Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2No14-10–Metlabsfile#E113051(PNZ)
· One-year factory warranty
· Free custom engraving Other finishes available upon request
H-150 Series Narrow Style. Mounts to narrow aluminum door frames.
H-110 Series Narrow Style. Mounts to narrow aluminum door frames.
H-130 Series narrow Style. Mounts to narrow aluminum door frames.
· Size: 4.5”H x 1.75”W
· Tamper resistant, the button cannot be burned or pried off
· 1 to 45 second adjustment range (PNZ)
· Small, rugged self-timing switches available with wires or terminal block(PNZ)
· Mounts to narrow aluminum door frames
· Furnished with 3/8” filler plate for internal frame depth clearance
· Button: 2” Anodized aluminum
· Back Plate: Stainless steel
· Standard Finishes: Red, Blue and Clear anodizing
· Contact rating: 2.5 AMP @ 24 VDC, 15 AMP @ 480 VAC
· Contact rating (PNZ): 5 AMP @ 125 VAC Form Z
· Listed UL508/CSA C22.2No14-10–Metlabsfile#E113051(PNZ)
· One-year factory warranty
· Free custom engraving Other finishes available upon request
CLAMSELL AND PROXIMITY CARDS.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.

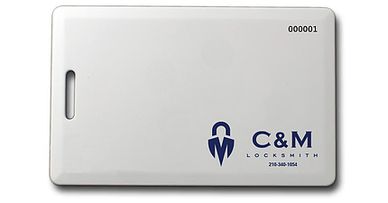

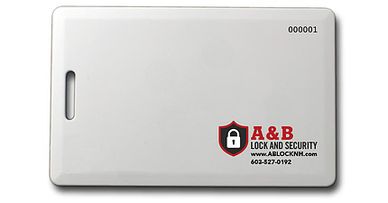

A proximity card is the size and shape of a credit card. These cards come with slot punch options on both the vertical end and horizontal end of the card, which lets you decide on what end, if any, you would like the hold for a key ring or lanyard. Please note that these proximity cards do not come pre-punched and are only available in white. They can either be etched with your logo or printed.

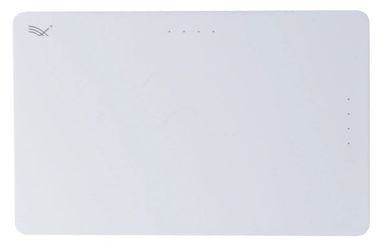

HIGHPOWER HG ISO PROXIMITY CARD 125Khz 50 per box
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
A proximity card is the size and shape of a credit card. These cards come with slot punch options on both the vertical end and horizontal end of the card, which lets you decide on what end, if any, you would like the hold for a key ring or lanyard. Please note that these proximity cards do not come pre-punched and are only available in white
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
HIGHPOWER HC CLAMSHELL PROXIMITY CARD 125Khz 50 PER BOX.
A proximity card is the size and shape of a credit card. These cards come with slot punch options on both the vertical end and horizontal end of the card, which lets you decide on what end, if any, you would like the hold for a key ring or lanyard. Please note that these proximity cards do not come pre-punched and are only available in white. They can either be etched with your logo or printed.
CUSTOM PROGRAMMING, AND LOGOS.
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
Fobs.
A key fob is a small, programmable hardware device that provides access control to a physical object by placing it near a reader. Our key fobs are fully customizable with your logo and other specific information you request (i.e. website, telephone number, etc.) and come in three colors: black, grey and red. All of our key fobs have a slot at the top that you can easily put on your key ring or lanyard.
Select Fob in Black.
(Format)-(Your Company name)
Custom color printing with your logo included.
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
HIGHPOWER PROXIMITY FOB 125Khz 50 PER BOX
